臥式總規格表
臥式

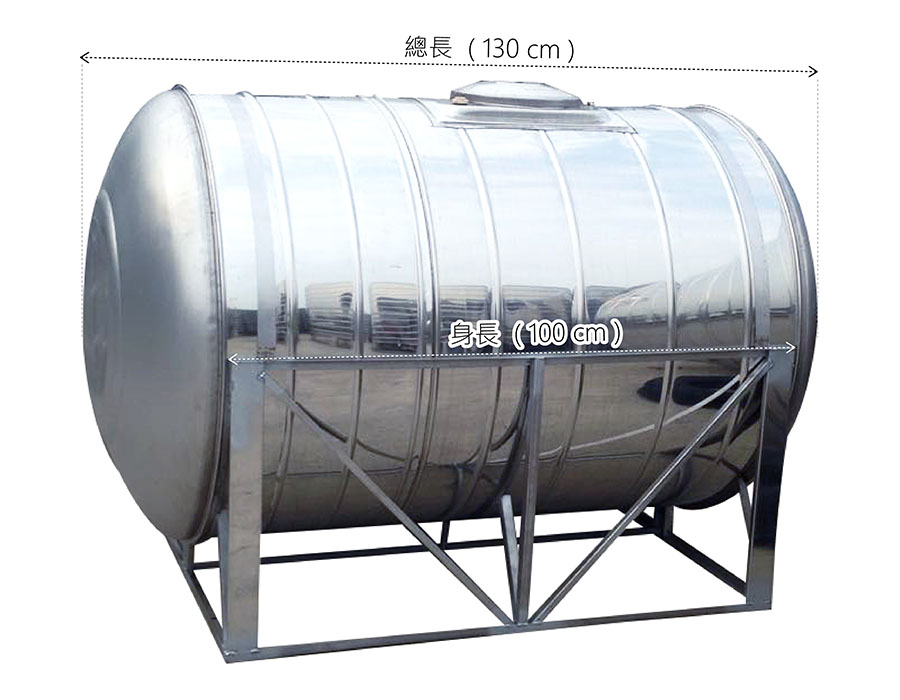

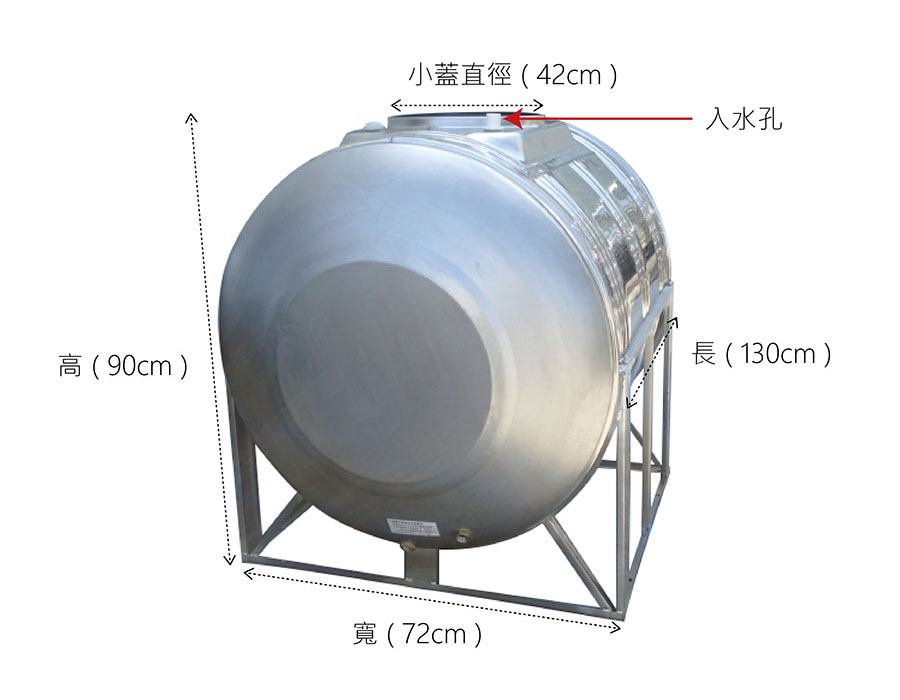

| 容量型號 | 直徑 | 厚度 | 桶身長度 |
總長度約
(含架)
|
總寬度約
(含架)
|
總高度約
(含架)
|
小蓋直徑 | 入水口 | 出水口 | 清洗口 | 實際容量 |
| (L) | cm | mm | cm | cm | cm | cm | cm | 英吋 | 英吋 | 英吋 | (L) |
| 500LA | 70 | 0.4/0.5/0.6 | 100 | 116 | 72 | 85 | 42 | 3/4"*2 | 1" | 1" | 460 |
| 500LB | 70 | 0.4/0.5/0.6 | 120 | 136 | 72 | 85 | 42 | 3/4"*2 | 1" | 1" | 520 |
| 850LA | 85 | 0.4/0.5/0.6 | 100 | 118 | 87 | 100 | 42 | 3/4"*2 | 1" | 1" | 680 |
| 850LB | 85 | 0.4/0.5/0.6 | 120 | 138 | 87 | 100 | 42 | 3/4"*2 | 1" | 1" | 750 |
| 1T97LA | 97 | 0.4/0.5/0.6/0.8 | 100 | 130 | 99 | 112 | 42 | 3/4"*2 | 1" | 1" | 890 |
| 1.5T105LA | 105 | 0.4/0.5/0.6/0.8 | 120 | 150 | 107 | 120 | 42 | 3/4"*2 | 1-1/2" | 1" | 1210 |
| 2T118LA | 118 | 0.5/0.6/0.8 | 120 | 155 | 120 | 133 | 42 | 3/4"*2 | 1-1/2" | 1" | 1530 |
| 2T123A | 123 | 0.5/0.6/0.8 | 120 | 155 | 125 | 138 | 42 | 3/4"*2 | 1-1/2" | 1" | 1660 |
| 2T136LA | 136 | 0.6/0.8/1.0 | 120 | 160 | 140 | 151 | 42 | 3/4"*2 | 2" | 1" | 1960 |
| 2T142LA | 142 | 0.6/0.8/1.0 | 120 | 160 | 146 | 155 | 42 | 3/4"*2 | 2" | 1" | 2100 |
| 3T136LA | 136 | 0.6/0.8/1.0 | 180 | 220 | 140 | 151 | 42 | 3/4"*2 | 2" | 1" | 2900 |
| 3T136LB | 136 | 0.6/0.8/1.0 | 200 | 240 | 140 | 151 | 42 | 3/4"*2 | 2" | 1" | 3200 |
| 3T142LA | 142 | 0.6/0.8/1.0 | 180 | 220 | 146 | 155 | 42 | 3/4"*2 | 2" | 1" | 3480 |
| 4T142LA | 142 | 0.6/0.8/1.0 | 200 | 240 | 146 | 155 | 42 | 3/4"*2 | 2" | 1" | 3800 |
| 4T160LA | 160 | 0.8/1.0/1.2 | 200 | 245 | 165 | 175 |
50圓蓋
|
3/4"*2 | 2" | 1-1/2" | 4300 |
| 5T160LA | 160 | 0.8/1.0/1.2 | 240 | 285 | 165 | 175 | 50圓蓋 | 3/4"*2 | 2" | 1" | 5100 |
| 5T170LA | 170 | 0.8/1.0/1.2 | 200 | 245 | 175 | 185 |
50圓蓋
|
3/4"*2 | 3" | 1-1/2" | 5000 |
| 5T170LB | 170 | 0.8/1.0/1.2 | 220 | 265 | 175 | 185 | 50圓蓋 | 3/4"*2 | 3" | 1" | 5330 |
| 5T180LA | 180 | 0.8/1.0/1.2 | 200 | 255 | 185 | 195 |
50圓蓋
|
3/4"*2 | 3" | 1-1/2" | 5600 |
| 6T170LA | 170 | 0.8/1.0/1.2 | 240 | 295 | 175 | 185 |
50圓蓋
|
3/4"*2 | 3" | 1-1/2" | 5900 |
| 6T180LA | 180 | 0.8/1.0/1.2 | 240 | 295 | 185 | 195 |
50圓蓋
|
3/4"*2 | 3" | 1-1/2" | 6600 |
| 6T200LA | 200 | 0.8/1.0/1.2 | 200 | 255 | 205 | 215 | 50圓蓋 | 3/4"*2 | 3" | 1-1/2" | 6900 |
| 8T200LA | 200 | 0.8/1.0/1.2 | 240 | 295 | 205 | 215 | 50圓蓋 | 3/4"*2 | 3" | 1-1/2" | 8160 |
| 9T210LA | 210 | 1.0/1.2 | 240 | 300 | 215 | 225 | 50圓蓋 | 3/4"*2 | 3" | 1-1/2" | 9000 |
| 10T220LA | 220 | 1.0/1.2 | 240 | 300 | 225 | 235 | 50圓蓋 | 3/4"*2 | 3" | 1-1/2" | 9880 |
| 10T230LA | 230 | 1.0/1.2 | 240 | 300 | 235 | 245 | 50圓蓋 | 3/4"*2 | 3" | 1-1/2" | 10800 |
| 12T230LA | 230 | 1.0/1.2 | 300 | 360 | 235 | 245 | 50圓蓋 | 3/4"*2 | 3" | 1-1/2" | 13700 |
| 15T230LA | 230 | 1.2/1.5 | 360 | 430 | 235 | 245 | 50圓蓋 | 3/4"*2 | 3" | 1-1/2" | 15780 |
